Connection Protocol Implementation

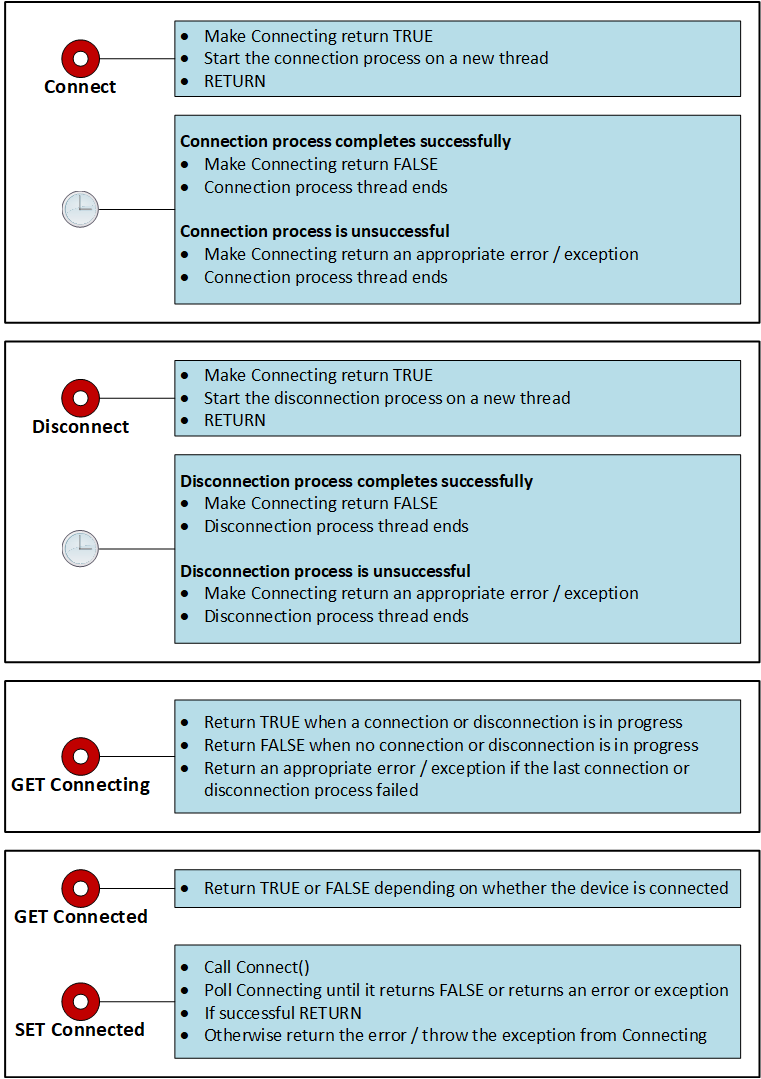

The following diagram shows how to implement the new Platform 7 Connect / Disconnect connection mechanic with the existing SET Connection mechanic that must be retained to ensure backward compatibility with Platform 6 and earlier clients.
